Dornier 17 handbook illustrations, detail views, interiors, walkaround - reference for the new-tool Airfix Do 17 in 72nd scale - page last updated 05 October 2015

A collection (20+) of reference photos (from both expired and current ebay auctions) and handbook drawings to accompany 'Stew' Dapple's build of the new-tool Airfix Do 17 on this blog here

Click to view full screen/image

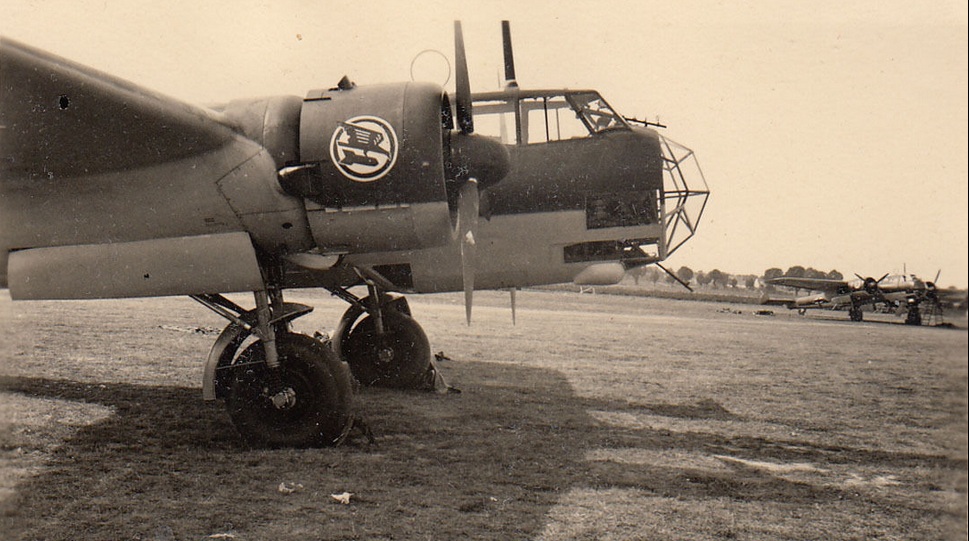

Above; Do 17 Z of 6./KG 3. Currently on offer here

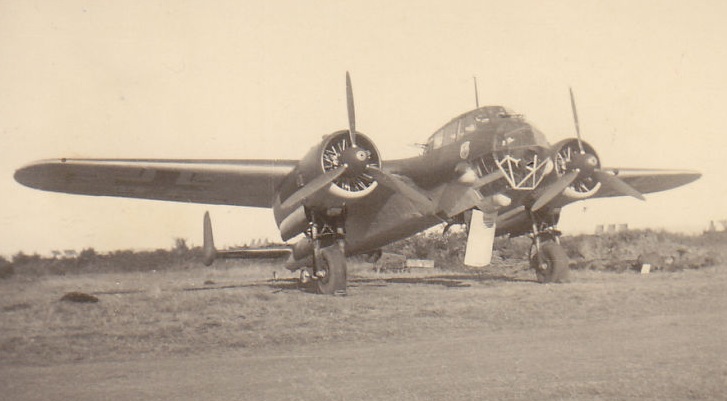

Above; Do 17 Z-5 KGr. 606, Lannion, France

 Above, Dornier 17 stencil detail ( Aussenbeschriftung) and splinter scheme camo lay out (Tarnschutzanstrich)

Below; Do 17 Z-6 of 2./NJG 2 seen in Gilze-Rijen during September 1940. See pic on page 65 of Volume 1 of the Stipdonk/Meyer Zerstörer- und Nachtjagdverbände series. Originally with 5./ NJG 1 this Staffel was re-designated 2./ NJG 2 in September 1940..

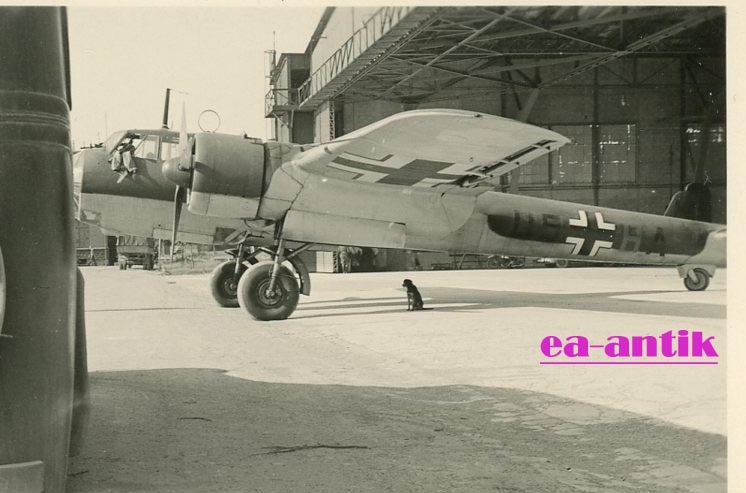

Below; Dornier Do 17 Z of KG 2 (Geschwaderkennung U5)

Below; Dornier Do 17 auf dem Militär-Flugplatz Sedes bei Saloniki in Griechenland - airfield of Sedes in the vicinity of Salonika, Greece.
